Widget Types and Operation

HyperVisu offers a comprehensive range of widgets designed to control and monitor various home automation components through the KNX system. Each widget type provides specific functionality tailored to its purpose.

Push Buttons #

Push buttons are simple control elements that send a command to the KNX bus when pressed.

Operation #

  • Appearance: Displays the widget name and icon alongside a pushbutton.
  • Interaction: The button changes to the active color when pressed.
  • Functionality: When pressed, the widget sends an event to the serve



Pushbutton Types #

HyperVisu supports four different types of pushbutton functionality:

  • ON Pushbutton (Type 1)
    • Sends an ON command (value 1) to the device when pressed and released
    • The button action is independent of the current state of the controlled device
  • OFF Pushbutton (Type 2)
    • Sends an OFF command (value 0) to the device when pressed and released
    • The button action is independent of the current state of the controlled device
  • Toggle ON/OFF Pushbutton (Type 3)
    • Sends alternating ON or OFF commands with each press
    • Automatically takes into account the feedback value received from the device
    • Requires a status feedback object configured to update the button’s state
  • Send Value Pushbutton (Type 4)
    • Sends a specific predefined value stored in object 1 to the device when pressed
    • Can be configured to send any value (not just ON/OFF)
    • Useful for sending scene numbers, percentage values, temperature setpoints, or other numeric values
    • The value to be sent is configured in the ElauPro configuration



Use Cases: Push buttons are ideal for triggering scenes, sending specific values to the KNX bus, or executing momentary controls such as doorbell or gate controls.

Light Switches #

Light switches provide simple on/off control for lighting circuits with status feedback.

Operation #

  • Appearance: Displays the widget name and icon alongside an on/off switch.
  • Interaction: The switch changes to the active color when its status is ON.
  • Functionality:
    • When toggled, the new switch status is immediately sent to the KNX bus
    • If the status changes from another source (like a physical switch), the application automatically updates the switch position
  • Feedback: The switch position always reflects the actual state of the light
  • Global Commands: Light switches are included in global lighting commands and appear in the active light point count in room views


Dimmers #

Dimmers allow for variable intensity control of lighting.

Standard Dimmer #


Standard dimmers control the brightness of a single light fixture.

Operation #

  • Appearance: Displays the widget name, icon, on/off switch, and a slider for brightness control.
  • Interaction:
    • The on/off switch toggles the light
    • The slider adjusts brightness from 0% to 100%
    • The current brightness value is displayed with % unit
  • Functionality:
    • Switch status is updated both from the app input and from KNX bus feedback
    • Brightness value is sent to the KNX bus when the slider is released
    • The app display updates when brightness changes occur from other sources
  • Status Indication: The switch reflects the current on/off state, and the slider position shows the current brightness level



RGBW Dimmer #

RGB dimmers allow control of both brightness and color for compatible RGB lighting.

Operation #

  • Appearance: Displays the widget name, icon, on/off switch, a slider for brightness, and color selection.
  • Interaction:
    • The on/off switch toggles the light
    • The slider adjusts brightness from 0% to 100%
    • The slider color displays the currently selected RGB color
    • Tapping on the widget opens the detailed color selection interface
  • Functionality:
    • The color selection interface allows choosing any color from the RGB spectrum
    • RGB values are sent to the KNX bus when a new color is selected
    • Both brightness and color information update if changed from another source



Tunable White Dimmer #

Tunable white dimmers control both brightness and color temperature of white light.

Operation #

  • Appearance: Displays the widget name, icon, on/off switch, and a slider for brightness control.
  • Interaction:
    • The on/off switch toggles the light
    • The slider adjusts brightness from 0% to 100%
    • Tapping on the widget opens the detailed view with brightness and color temperature controls
  • Functionality:
    • The temperature slider adjusts from warm white to cool white
    • Brightness and temperature values are sent to the KNX bus when sliders are released
    • Both values update if changed from another source

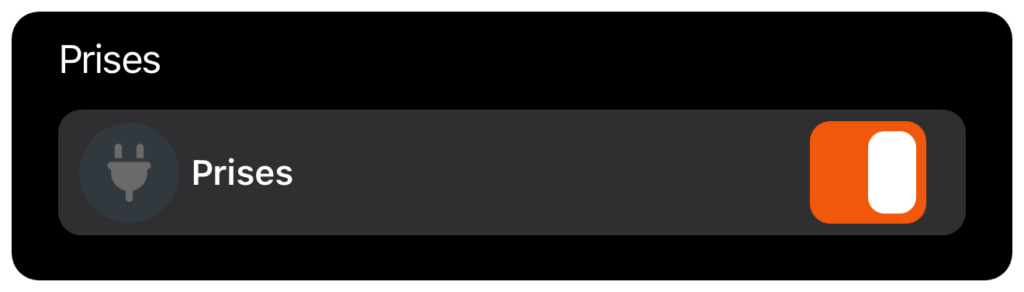

Switches #

Switches provide on/off control for general electrical circuits, typically used for power outlets.

Operation #

  • Appearance: Displays the widget name and icon alongside an on/off switch.
  • Interaction: The switch turns orange when its status is ON.
  • Functionality:
    • When toggled, the new switch status is immediately sent to the KNX bus
    • If the status changes from another source, the application automatically updates the switch position



Differentiation from Light Switches: Unlike light switches, general switches are not included in global lighting commands and do not affect the active light point count

Shutters/Blinds #

Shutters and blinds widgets control motorized window coverings with precise positioning capabilities.

Simple Shutters #

Simple shutters provide basic up/down and positioning control.

Operation #

  • Appearance: Displays the widget name, icon, and three control buttons (Up, Stop, Down).
  • Position Indication: Shows the current position (0% = fully open, 100% = fully closed).
  • Interaction:
    • The Up/Down buttons move the shutter in the corresponding direction
    • The Stop button halts movement immediately
    • The buttons change to the active color when the shutter is moving in that direction
    • Tapping on the widget opens the detailed view with position slider
  • Detailed View:
    • Provides a vertical slider for precise position control
    • Displays the current percentage position
    • Allows direct setting of the desired position by adjusting the slider



Adjustable Slat Blinds #

Adjustable slat blinds add slat angle control to the basic shutter functionality.

Operation #

  • Appearance: Similar to simple shutters with the addition of slat control in the detailed view.
  • Interaction:
    • Basic controls (Up, Stop, Down) operate the same as simple shutters
    • The detailed view provides two sliders:
      1. A vertical slider for blind position (0-100%)
      2. A horizontal slider for slat angle (0-100%)
  • Functionality:
    • Position values are sent to the KNX bus when sliders are released
    • Position and slat angle update if changed from another source
    • Both position values are displayed with percentage units
  • Status Feedback:
    • Moving Up/Down indicators show when the blind is in motion
    • Position values display real-time feedback from the blind actuator
    • Labels can be customized (e.g., “Open”/”Closed”) in the configuration

Climate Controls #

Climate Controls provide comprehensive management of your KNX-compatible heating and cooling systems, allowing precise temperature regulation throughout your building.

Temperature Setpoint Adjustment #

Temperature control widgets allow you to monitor and adjust the temperature in different zones of your building.

Operation #

  • Basic View: The widget displays:
    • Current room temperature with unit (°C) and the specified number of digits
    • Current temperature setpoint
    • Increase (+) and decrease (-) buttons for adjusting the setpoint
    • A slider for smooth temperature adjustment
  • Interaction:
    • Press the + button to increase the temperature setpoint in 0.2°C increments
    • Press the – button to decrease the temperature setpoint in 0.2°C increments
    • Use the slider for more precise temperature adjustment
    • The new setpoint is sent to the KNX bus when you release the slider or press a button
  • Feedback:
    • The current room temperature updates in real-time based on feedback from temperature sensors
    • The setpoint value updates if changed from another source (like a physical thermostat)
    • The orange portion of the slider indicates the current setpoint relative to the available range



Operation Modes (Comfort, Standby, Night) #

Climate controls offer different operation modes to match your heating and cooling needs with your daily routines.



Operation #

  • Detailed View: Tap on the temperature widget to access the detailed view, which displays:
    • A circular temperature indicator showing the current temperature
    • The heating or cooling type of controller
    • Three mode buttons: Comfort, Standby, and Night
    • Temperature setpoint controls
  • Mode Functions:
    • Comfort Mode: Uses the exact temperature setpoint you’ve specified
    • Standby Mode: Automatically reduces the temperature by 3°C from the comfort setpoint (for heating) or increases it by 3°C (for cooling)
    • Night Mode: Automatically reduces the temperature by 1.5°C from the comfort setpoint (for heating) or increases it by 1.5°C (for cooling)
  • Mode Selection:
    • The currently active mode button is highlighted in orange
    • Tap any mode button to switch to that mode
    • The system sends the corresponding command to the KNX bus
    • The actual temperature setpoint adjusts automatically based on the selected mode
  • Visual Indication:
    • The circular indicator shows your current temperature in large digits
    • The “Heating” or “Cooling” label indicates the active operation
    • The orange arc around the circle represents the current temperature relative to the setpoint


Analog Inputs #

Analog Input widgets display measurement values from various sensors connected to your KNX system, such as temperature, humidity, power consumption, and more.

Value Display #

Analog Input widgets show real-time values with appropriate units for monitoring various metrics.

Operation #

  • Appearance: The widget displays:
    • The widget name and icon
    • The current measurement value with configurable units and decimal places
    • A visual bar indicating the value relative to its configured minimum and maximum range
  • Functionality:
    • Values are automatically updated when new data is received from the KNX bus
    • The filled portion of the bar indicates where the current value falls within the defined range
    • The color of the bar (typically orange) provides visual indication of the value’s intensity



Trending Function #

The trending function enables historical data visualization for analog inputs, allowing you to track changes over time.

Operation #

  • Access: Tap on an Analog Input widget configured for trending to open the trend view
  • Trend View Features:
    • Current value displayed prominently at the top
    • Graph showing historical data for the selected time period
    • Time range selector with four options: Hour, Day, Month, and Year
    • Y-axis scale that automatically adjusts to the data range
    • X-axis showing time increments appropriate for the selected range
  • Interaction:
    • Tap different time range buttons (Hour, Day, Month, Year) to change the time scope
    • Tap on the graph to see specific values at different points in time
  • Setup Requirements:
    • The “Trend” subtype must be selected for the widget in ElauPro
    • Data is automatically stored in the InfluxDB database on the HyperVisu server


Digital Inputs #

Digital Input widgets display the status of binary sensors or switches in your system.

Operation #

  • Appearance: The widget displays:
    • The widget name and icon
    • The current status label, which can be customized (e.g., “On”/”Off”, “Open”/”Closed”, “Running”/”Stopped”)
  • Status Indication:
    • The widget shows one of two possible states based on the binary input
    • Custom status labels can be defined in ElauPro by editing the corresponding object’s “Min label” (for value 0) and “Max label” (for value 1)
    • No direct user interaction is possible; the widget is for display purposes only

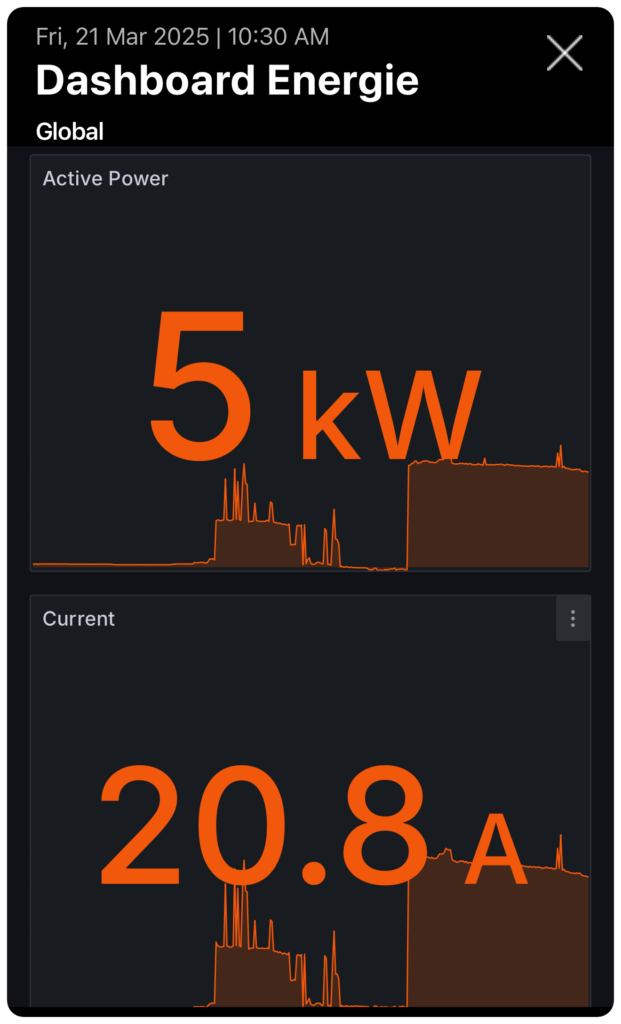

WebView Widgets #

WebView widgets allow you to integrate web content directly into your HyperVisu interface, particularly useful for displaying Grafana dashboards.

Operation #

  • Configuration: In ElauPro, you can specify the URL of the web page to be displayed
  • Content: Typically used to embed Grafana dashboards for advanced data visualization
  • Interaction: The embedded web page is fully interactive within the HyperVisu application

Camera Integration #

Camera widgets allow you to view live video feeds from compatible IP cameras throughout your property.

Operation #

  • Configuration: The camera’s RTSP video stream URL is specified in ElauPro
  • Viewing: Tap on the camera widget to open the live video stream
  • Supported Formats: RTSP, HTTP, and RTSP over HTTP streaming protocols are supported



Note : Remember that camera streams may use significant bandwidth when active



Virtual Widgets #

Virtual widgets enable integration with non-KNX devices and systems through Node-RED, expanding the capabilities of your HyperVisu system beyond standard KNX functionality.

Features #

  • Protocol Independence: Uses the “virtual” protocol instead of KNX
  • Node-RED Integration: Commands and states are processed through Node-RED flows
  • Bidirectional Communication:
    • Sends commands from the HyperVisu application to external systems
    • Receives data from external sensors or systems for display in the app



Applications #

  • IoT Device Integration: Connect to smart devices using various protocols
  • Cloud Service Communication: Interface with weather services, energy providers, or other online data sources
  • Non-KNX Systems Control: Integrate with proprietary home automation components
  • Custom Logic Implementation: Create complex automation rules combining KNX and non-KNX elements


Hidden Widgets #

Hidden widgets are configuration elements that exist in the system but don’t appear in the user interface, useful for background operations and logic functions.

Purpose #

  • Background Processing: Create logic elements for use in Node-RED without cluttering the user interface
  • System Variables: Store and manipulate values used by multiple automation processes
  • Intermediate Controls: Provide connection points between different automation systems



Configuration #

  • Widgets can be hidden by unchecking the “visible” option in ElauPro’s widget configuration
  • Hidden widgets retain all functionality but are not displayed in the mobile application
  • They remain accessible in Node-RED for programming and automation purposes
What are your feelings
Table of contents

Innovative Solutions for KNX Integrators

Discover More

Our Contacts

  • Rue de la petite ferme 5c, 4218 Couthuin, Belgium
  • +32 (0)2/897 69 33
  • info@elausys.be

Follow Us

Facebook-f Instagram Linkedin Youtube-square
Contact Us

© 2024 Elausys. All rights reserved
