Auxiliary power supply 24VDC 15W

Overview

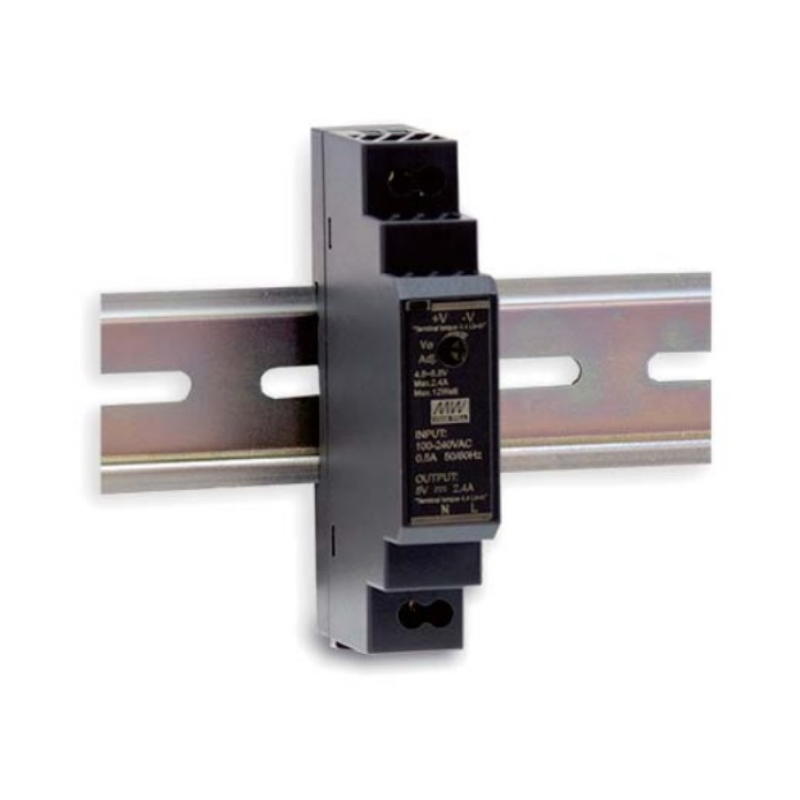

The PSA-15W is an economical ultra-slim DIN rail mounted switching power supply engineered for space-constrained KNX gateway installations. Delivering 15W of reliable 24VDC power in an industry-leading 17.5mm (1SU) width, this power supply is the ideal companion for single Elausys inverter gateways (INV-KNX series) and alarm interfaces requiring 12-30VDC auxiliary power.

Technical Capabilities

The PSA-15W provides a rated output of 24VDC at 0.63A continuous (15.2W), with voltage adjustability from 21.6 to 29VDC to accommodate various device requirements. Universal input accepts 85-264VAC (277VAC operational) or 120-370VDC, making it suitable for installations worldwide regardless of local grid standards.

High-efficiency operation at 86% typical reduces heat generation and energy waste, while ultra-low no-load power consumption below 0.3W minimizes standby losses. Output regulation maintains tight tolerances with load regulation of 1% and line regulation of 0.5%, ensuring stable voltage delivery even with varying loads. Ripple and noise are held to 240mVp-p maximum, providing clean power for sensitive gateway electronics.

The 4kVAC input-to-output isolation and 100M ohm isolation resistance at 500VDC ensure electrical safety and protection of connected equipment. Class II isolation rating meets requirements for industrial and commercial installations without requiring earth ground connection.

Installation and Configuration

DIN rail mounting is compatible with both TS-35/7.5 and TS-35/15 standard rails, enabling straightforward installation in any automation cabinet. The ultra-slim 17.5mm width occupies only 1 space unit (1SU), preserving maximum cabinet space in dense installations where every millimeter counts.

Wiring connections use screw terminals for both AC input and DC output. The adjustable output voltage trimmer allows fine-tuning between 21.6 and 29VDC without external tools, accommodating devices with varying voltage requirements within a single installation.

Free air convection cooling eliminates the need for forced ventilation in most applications. The wide operating temperature range of -30 to +70C ensures reliable operation in demanding environments including unconditioned technical rooms.

Applications

Single KNX Gateway Installations: Power individual Elausys INV-KNX series inverter gateways (SMA-KNX, Fronius-KNX, Huawei-KNX, etc.) or alarm system interfaces when only one gateway is required in the cabinet.

Space-Constrained Cabinets: The 1SU width makes the PSA-15W ideal for retrofit installations or small distribution boards where cabinet space is at an absolute premium.

Residential Installations: Single-family homes with one solar inverter gateway benefit from the economical, compact form factor without over-specifying power capacity.

Distributed Automation Points: Remote cabinet locations requiring auxiliary DC power for a single device benefit from the minimal footprint.

Compatibility and Integration

The PSA-15W integrates seamlessly with Elausys KNX gateway products including the INV-KNX inverter gateway range, alarm system gateways (JA-KNX, EVO-KNX, NXG-KNX), and other devices requiring 12-30VDC auxiliary power. The adjustable output voltage ensures compatibility with devices from various manufacturers.

Protection features include automatic short-circuit shutdown with recovery, over-voltage protection with re-power recovery, over-load current limiting, and thermal shutdown protection. These comprehensive safeguards protect both the power supply and connected equipment from fault conditions.

Certified to industrial standards with Class II isolation and LPS (Limited Power Source) classification, the PSA-15W meets requirements for professional building automation installations throughout Europe and internationally. For installations requiring power for multiple gateways, consider the larger PSA-30W which can supply several devices simultaneously.
