Building automation shouldn't mean building complexity.
Every KNX integrator knows the challenge: managing multiple device types, juggling separate configurations, and dealing with overcrowded distribution panels. We believe your expertise should focus on delivering exceptional automation solutions.
That's why we engineered a system that eliminates unnecessary complexity while maximizing your capabilities in the field.
True modularity through intelligent design.
One Master. Complete Control.
Instead of forcing you to choose between specialized devices or compromise on functionality, we created a unified platform where one master controls everything. Start with what you need today. Expand seamlessly tomorrow.
Mix switching, dimming, DALI, heating, and logic functions—all managed through a single KNX interface. Combined with ElauPro cloud integration, your ETS configuration is generated automatically, dramatically reducing commissioning time and eliminating configuration errors.
Key Benefits for Integrators

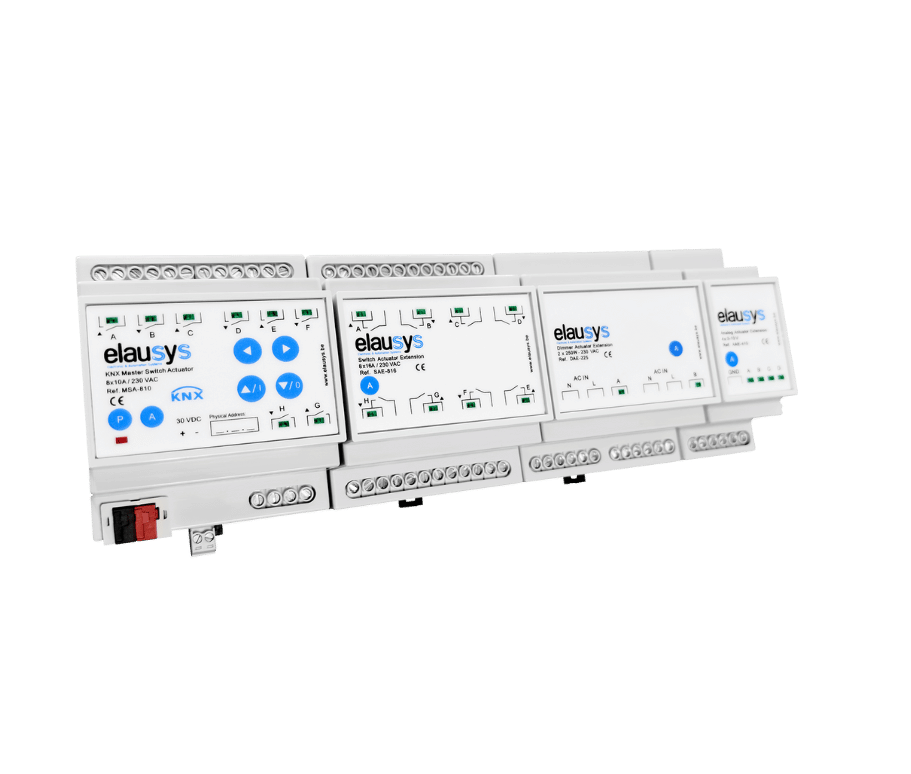

Extreme Modularity & Scalability
Build Your System, Your Way

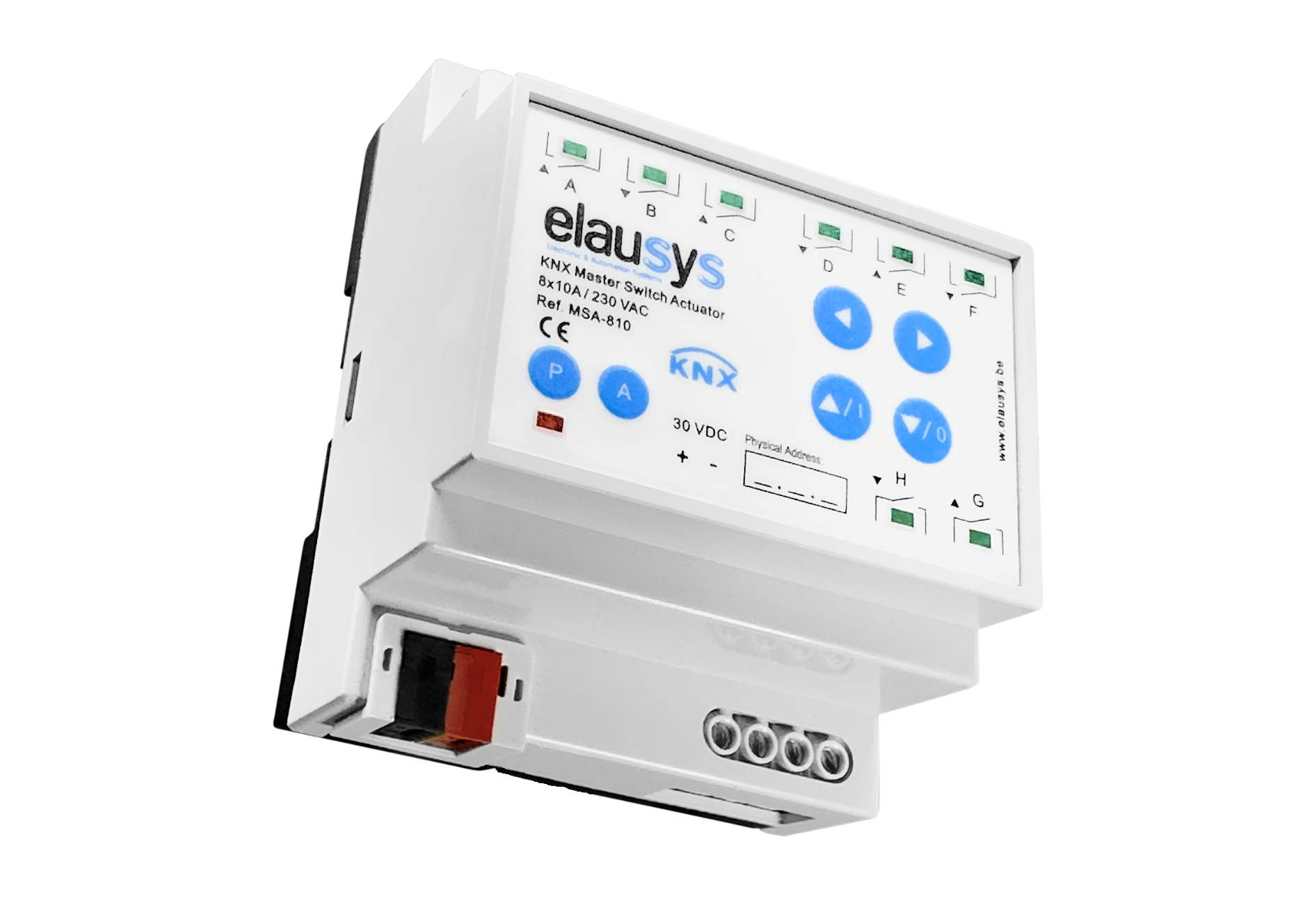

Start with the MSA-810 master actuator featuring 8 switching channels at 10A, then expand with up to 8 extension modules to reach 72 channels—all controlled through a single KNX device address. Mix switching, dimming, heating, DALI, and analog outputs in any combination that matches your project requirements.
Commercial Advantage
Quote with confidence knowing you can scale the system as project scope evolves, without replacing core hardware.
All-in-One Functionality
Every Function. One Platform.
Why manage separate devices for switching, blinds, heating, and lighting when one system handles it all?
- Switching — Lighting, outlets, appliances (up to 16A per channel)
- Shutter & Blind Control — Motorized blinds, shutters, awnings, louvers
- Heating & Cooling — Valve control with PI, PWM, and 2-point regulation
- DALI Lighting — Up to 64 individual devices or 16 groups

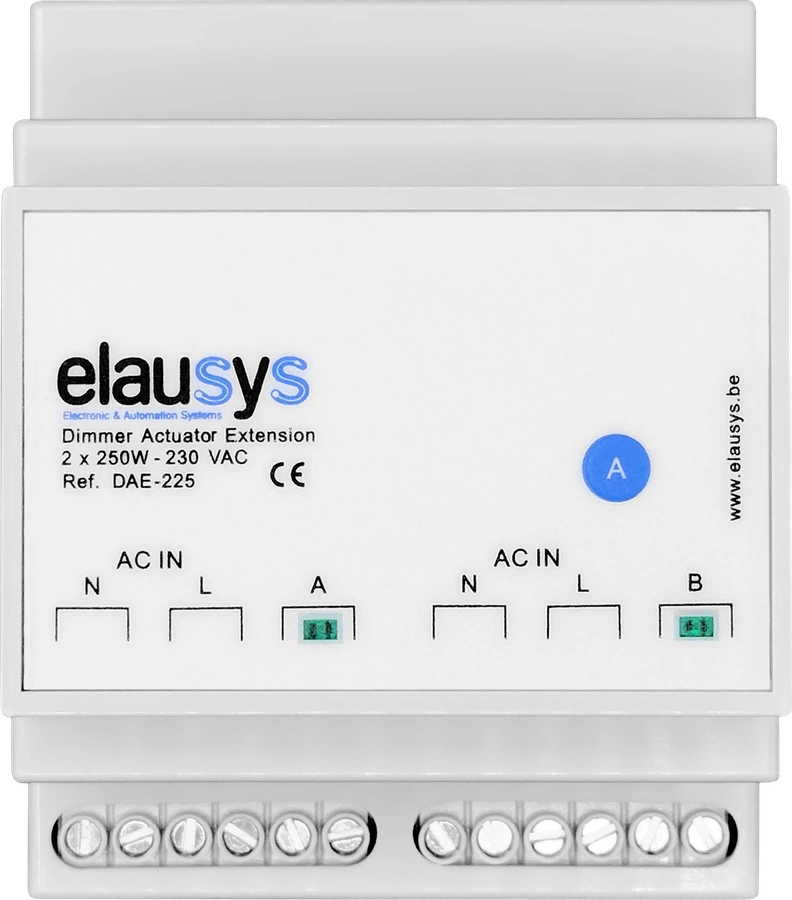

- Dimming — Phase dimming, 1-10V, RGB/RGBW, Tunable White

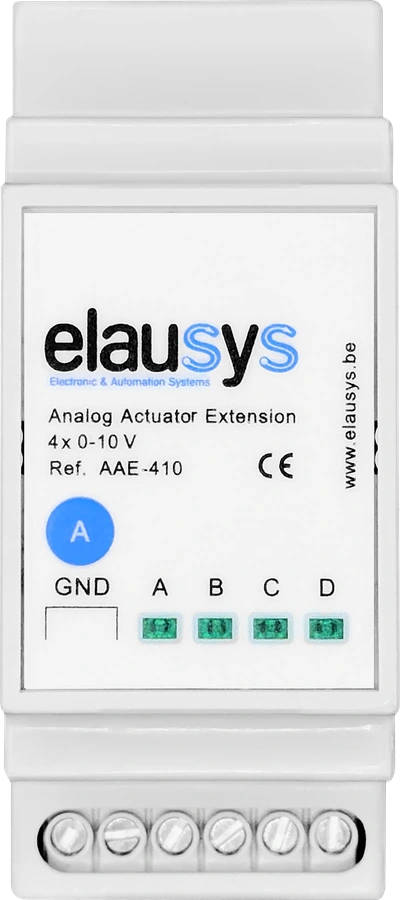

- Analog Output — 0-10V for HVAC, ventilation, proportional control
- Logic Functions — AND, OR, sequences, triggers, math operations
Commercial Advantage
Reduce inventory complexity and supplier management. One product family covers virtually every actuator requirement.
Advanced Switching Capabilities
Beyond Simple ON/OFF
Every switching channel offers far more than basic relay control. Configure each channel independently for:
- Staircase lighting with adjustable duration and pre-warning dimming
- Time functions including switch-on/off delays and minimum duration settings
- Scene storage with independent scenes per output
- Blocking functions for bus-controlled output protection
- Hour counters with maintenance warnings for lamp replacement scheduling
- Manual override via four integrated pushbuttons—test and adjust without bus voltage
Technical Highlight
Flexible channel pairing allows any two adjacent channels to operate as independent switches or combined shutter/blind control.
Commercial Advantage
Deliver sophisticated functionality without external timers or logic modules, reducing project costs while increasing client satisfaction.
Precision Shutter & Blind Control
Complete Motor Control Intelligence
Motorized blinds, shutters, and awnings demand precise control. The Universal Actuator System delivers professional-grade shutter management:
- Absolute positioning — Direct percentage-based position commands
- Relative movement — Step and full-travel commands for intuitive adjustment
- Independent timing — Separate travel times for upper/lower positions and slat movement
- Position feedback — Real-time status of blind position and slat angle
- Multi-speed support — Single or multi-speed motor compatibility
- Safety alarms — Three priority levels for rain, wind, and frost detection with automatic response
Technical Highlight
4-bit dimming object support enables seamless integration with standard KNX pushbutton interfaces.
Commercial Advantage
Eliminate dedicated shutter actuators in mixed installations—use the same master for lights and blinds, simplifying your bill of materials.
Sophisticated Heating & Cooling Control
Professional Climate Management Built-In
Integrate valve control directly into your actuator system with five control modes designed for HVAC requirements:
- On/Off Control — Direct valve switching for simple applications
- Limit Values — Hysteresis-based percentage control
- PWM Control — Adjustable cycle times (1-255 minutes) for proportional valve response
- PI Temperature Control — Professional proportional-integral regulation
- 2-Point Control — Simple hysteresis-based heating/cooling switching
Technical Highlight
Advanced temperature management includes Comfort, Standby, and Night setpoint modes with independent offsets, heating/cooling mode switching, frost protection, and valve protection.
Commercial Advantage
Deliver complete room climate control without dedicated heating actuators, reducing device count and simplifying system architecture.
DALI Lighting Integration
Professional DALI Control Through KNX
The DBE-64 extension module is a full-featured DALI bus master that bridges KNX automation with professional DALI lighting infrastructure. Control up to 64 individual DALI devices or organize them into 16 groups.
- Configurable as 32, 48, or 64 KNX channels
- Each channel independently assignable to single DALI gear or group
- Built-in web commissioning interface with visual addressing
- Real-time lamp state monitoring for all 64 gears
- Gear failure detection with error status display
Commercial Advantage
Integrate DALI lighting directly into your actuator system with professional commissioning tools included.
Powerful Built-In Logic Functions
64 Logic Functions. Zero External Hardware.
Reduce system complexity by embedding automation logic directly in the actuator. Configure up to 64 logic functions across 8 virtual modules:
- Logic Gates — AND, OR, XOR operations with up to 8 inputs
- Sequences — 4-step sequences with configurable outputs per step
- Trigger Functions — Evaluate multiple input conditions with 8 comparison operators
- Math Operations — Addition, subtraction, multiplication, division, Min/Max/Average
- Weekly calendar integration for time-based automation
Commercial Advantage
Deliver sophisticated automation scenarios without external logic modules or home servers—reducing costs, failure points, and commissioning complexity.

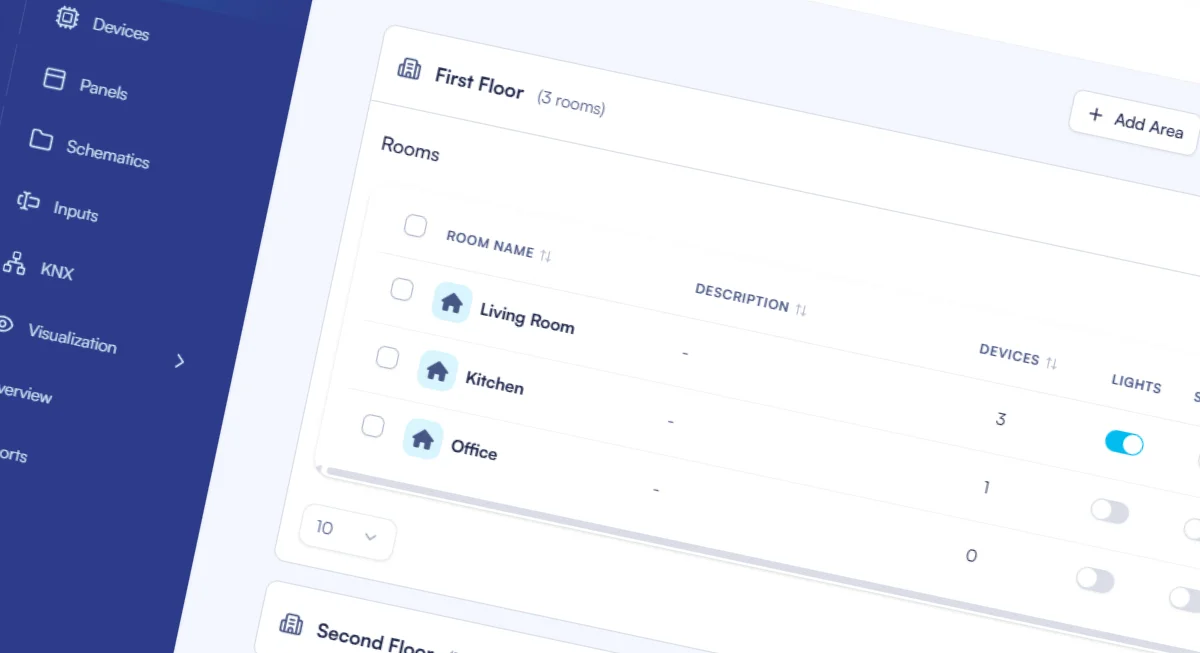

ElauPro Cloud Integration
Automatic Configuration. Instant Deployment.
The Universal KNX Actuator System is fully integrated with the ElauPro cloud platform, transforming how you configure and deploy KNX projects:
- Automatic ETS Application Generation — Define your channel configuration, receive a ready-to-import ETS application
- Multi-language Support — English, French, and Dutch interfaces
- Cloud-based Project Management — Access configurations from anywhere
- Configuration Validation — Catch errors before ordering hardware
- Seamless Deployment — Direct download to devices
Commercial Advantage
Dramatically reduce ETS programming time. Focus on solution design and client relationships instead of manual parameter configuration.
Choose Your Configuration
Build the exact system your project demands. Each extension connects to the MSA-810 master, automatically recognized and configured through ElauPro.
Note: Maximum 40 switching channels at 10A combined per master. Use 16A extensions for additional capacity.
Technical Specifications
Available Products
Discover our range of professional solutions for your automation projects.

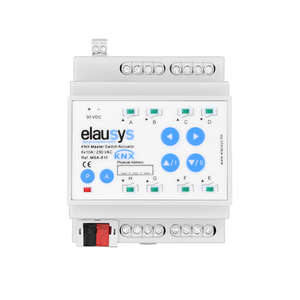

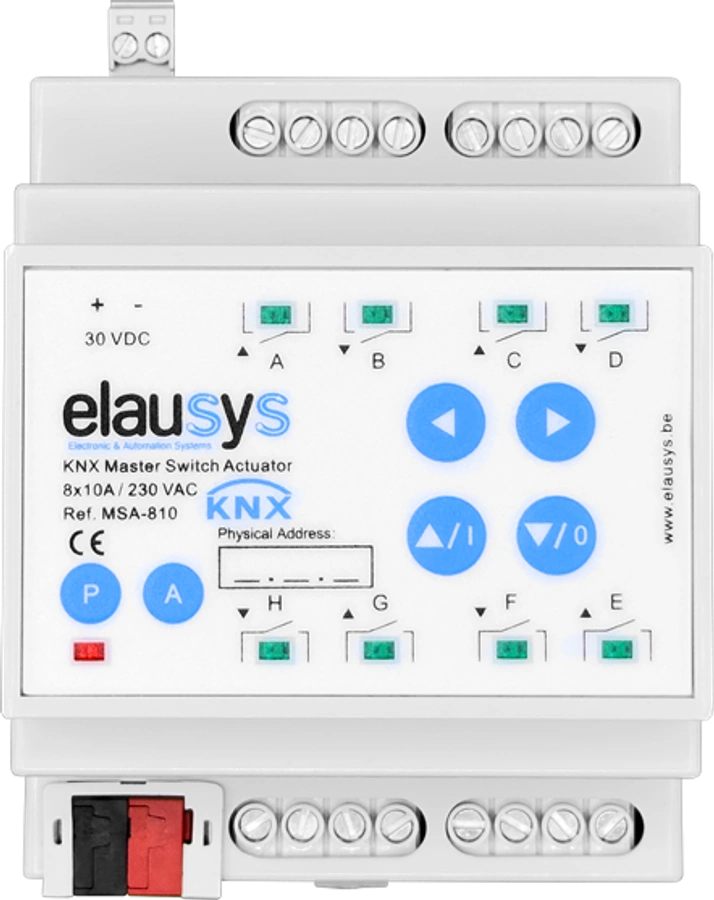

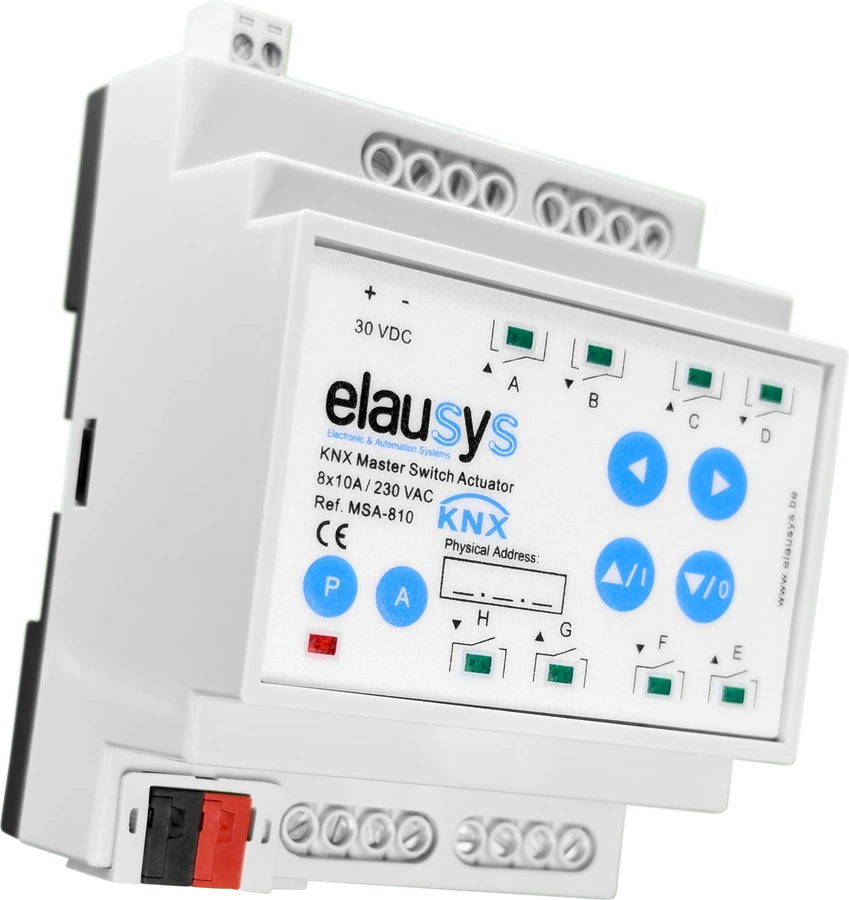

KNX Master Actuator 8x10A
KNX master switching actuator with 8 channels at 10A forming the foundation of the Universal KNX Actuator System. Expandable to 72 channels via up to 8 extension modules controlled through a single KNX address. Features built-in logic functions, manual pushbuttons, and ElauPro cloud integration for rapid ETS configuration.

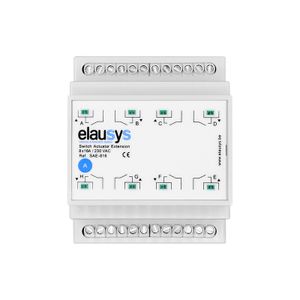

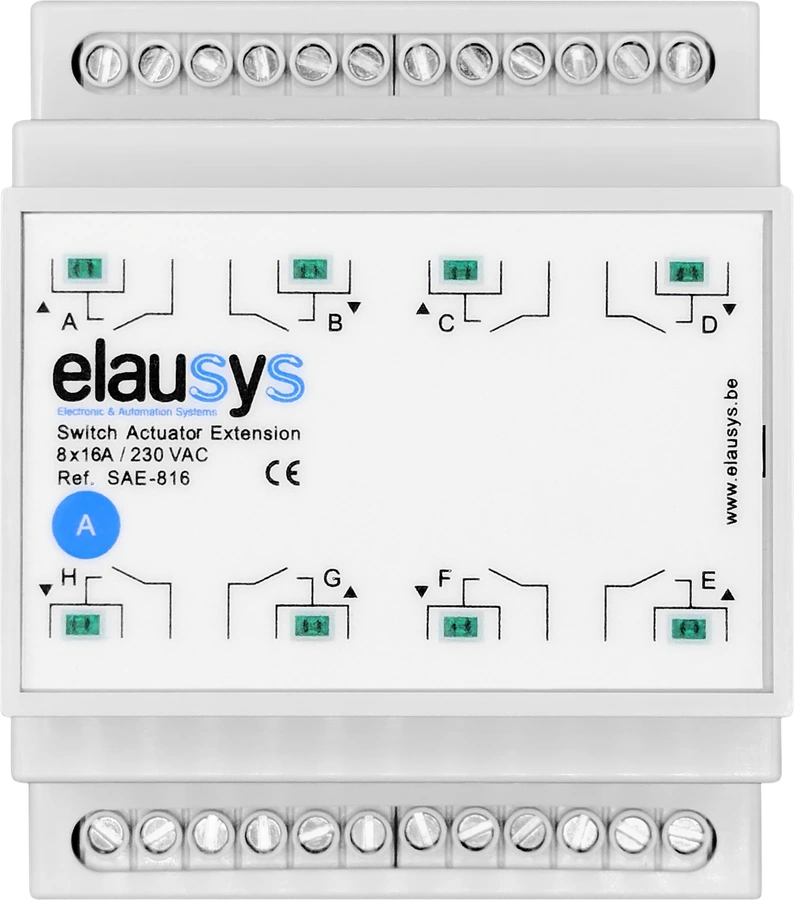

Switching Extension 8x16A
High-current 8-channel switching extension for the Elausys Universal KNX Actuator System, delivering 16A per channel for heavy-duty loads. Extends MSA-810 master with independent relay outputs for high-power lighting, appliances, and industrial equipment. Channels operate independently or grouped for shutter control operation;

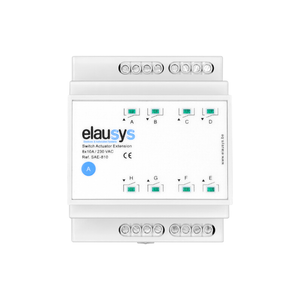

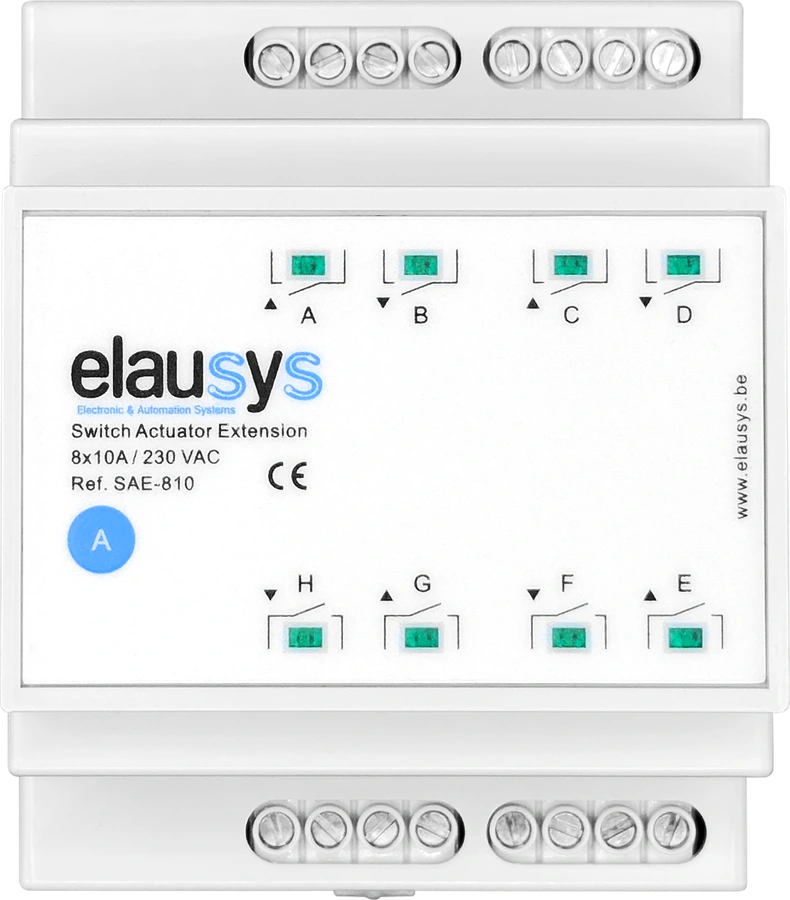

Switching Extension 8x10A
Extension module for the Elausys Universal KNX Actuator System adding 8 switching channels at 10A each to the MSA-810 master actuator. Each channel supports independent switch or shutter/blind configuration through a single KNX interface, enabling scalable building automation up to 72 outputs.

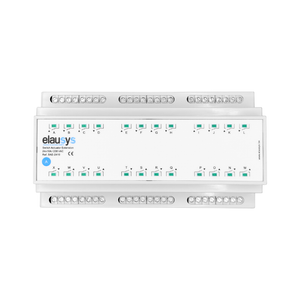

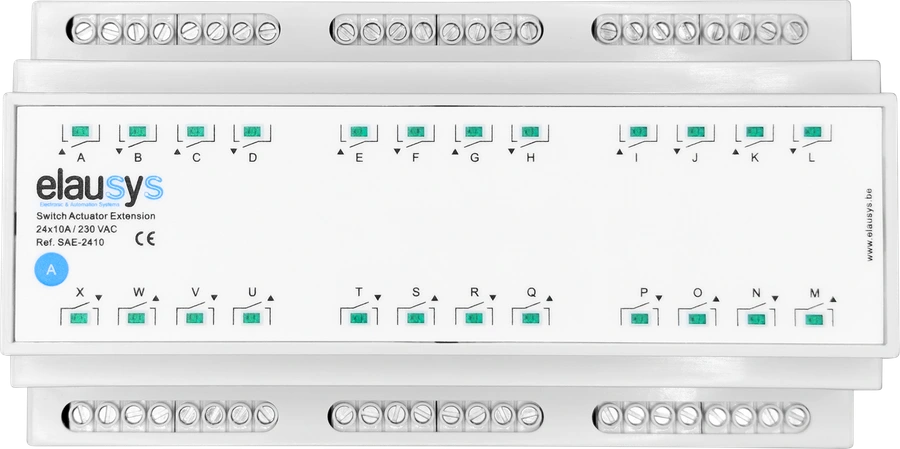

Switching Extension 24x10A
High-capacity 24-channel switching extension module for the Elausys Universal KNX Actuator System. Expands MSA-810 master actuator with 24 relay outputs at 10A/230VAC each, configurable as independent switching channels or shutter/blind pairs. Ideal for large-scale commercial lighting and motor control applications requiring maximum channel density.

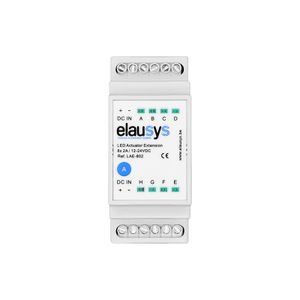

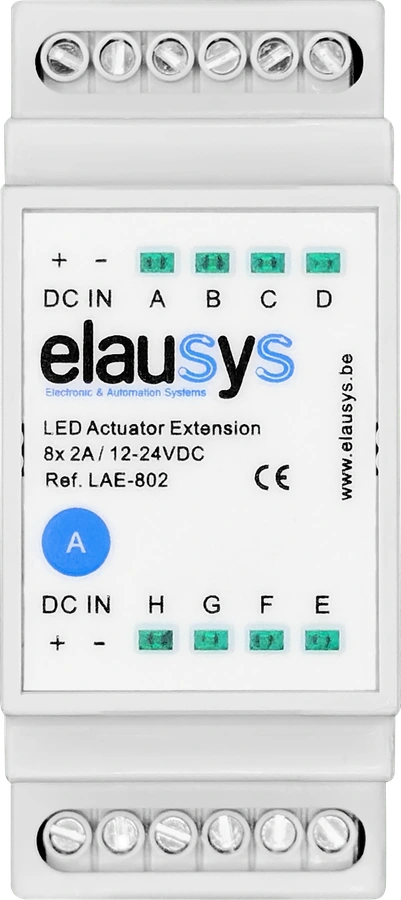

LED Actuator Extension
8-channel LED dimming extension for the Elausys Universal KNX Actuator System providing PWM control of 12-24VDC LED strips and fixtures at 2A per channel. Configurable as individual dimmers or grouped for RGB/RGBW and Tunable White applications with smooth dimming curves. Requires MSA-810 master actuator.

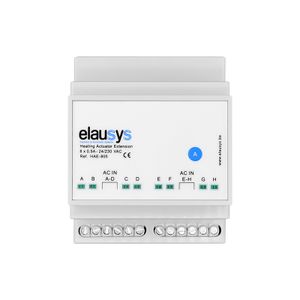

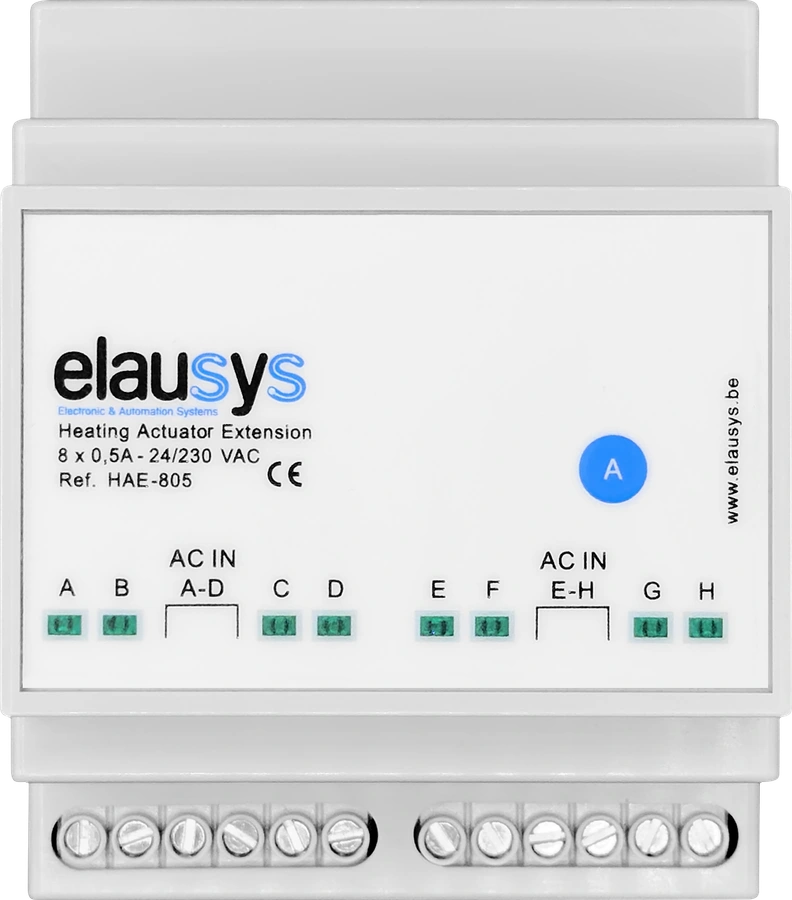

Heating extension 8-folds
8-channel KNX heating valve actuator extension for the Universal Actuator System controlling electrothermic valves in HVAC applications. Supports ON/OFF switching PWM modulation and PI temperature control for underfloor heating radiators and fan coil units. Requires MSA-810 master actuator.

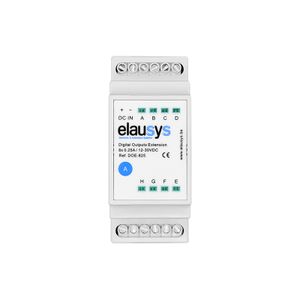

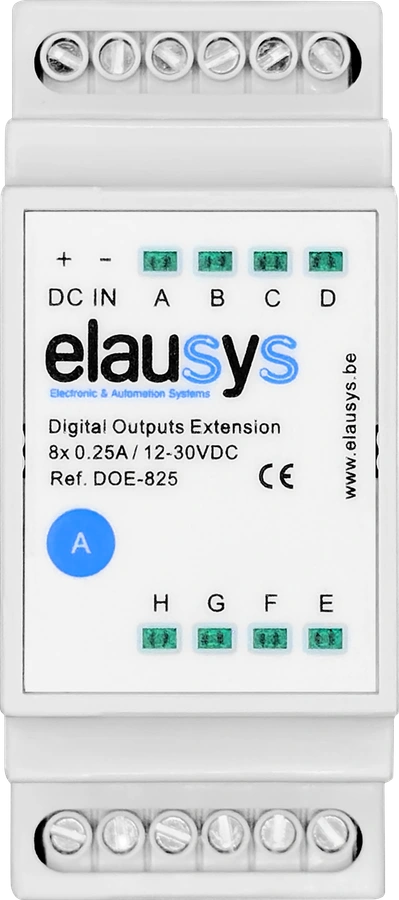

Digital Outputs Extension
8-channel KNX digital output extension for the Universal Actuator System providing 0.25A switching at 12-30VDC for low-voltage control of valves, indicator LEDs, external relays, and contactors. Configurable as switch actuator, shutter controller, or heating valve control. Requires MSA-810 master actuator.

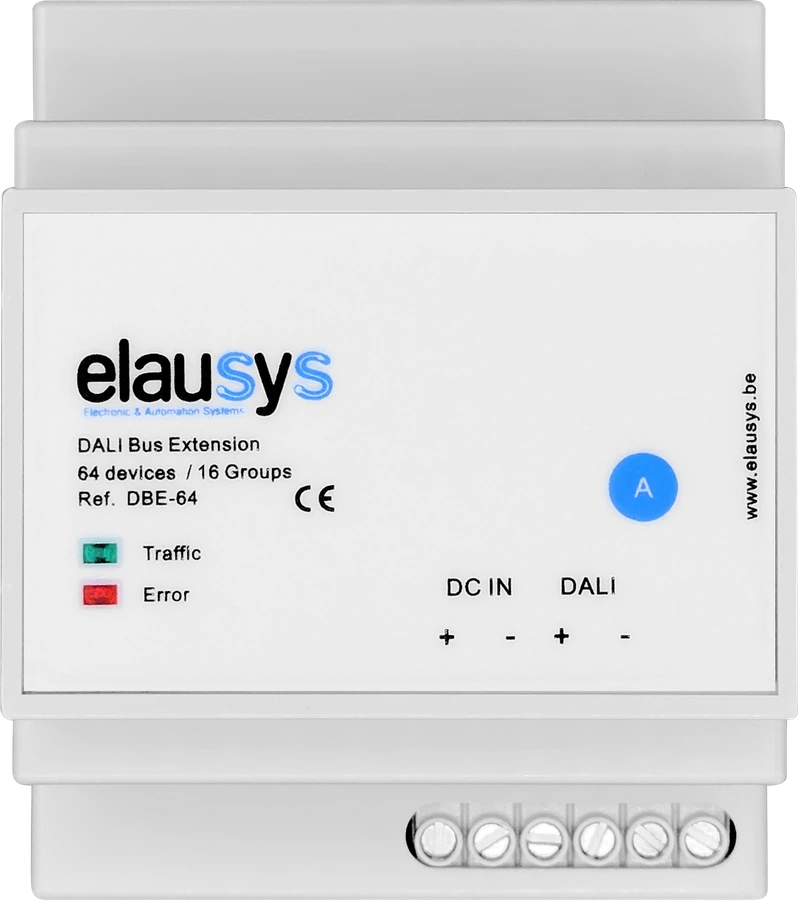

DALI Extension
Professional KNX-to-DALI gateway extension for the Universal Actuator System, controlling up to 64 individual DALI devices or 16 groups through a single KNX interface. Features built-in web commissioning interface for visual addressing, direct gear testing, real-time lamp monitoring, and failure detection. Requires MSA-810 master actuator.
