ELAUSYS / SAE-810

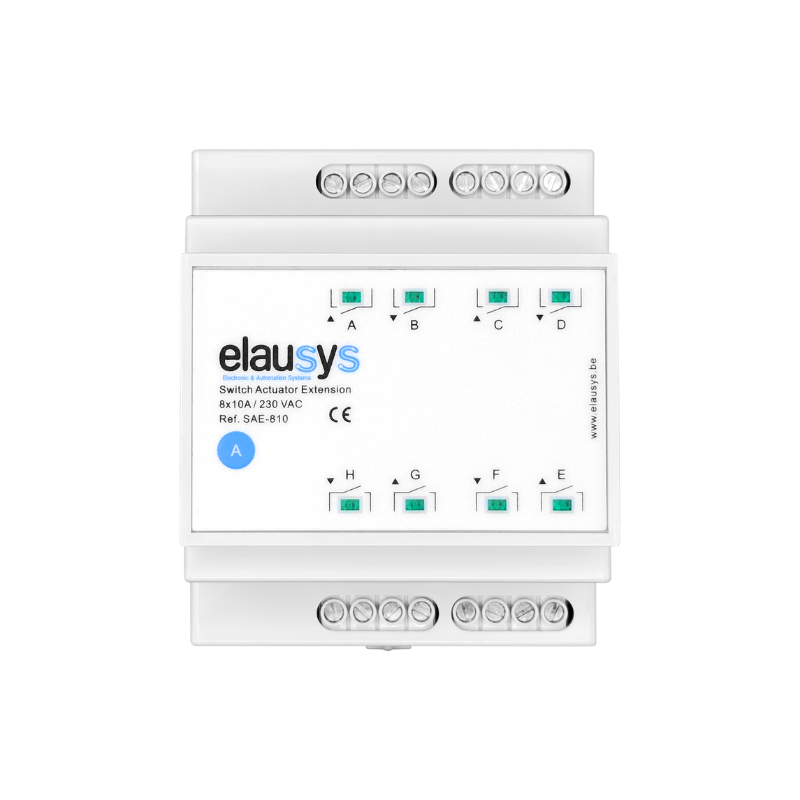

KNX Switch Actuator Extension 8x10A
The SAE-810 is an eight-channel switching extension for the MSA-810 KNX master actuator, with potential-free contacts rated at 10 A / 230 VAC per channel for resistive loads. It requires an MSA-810 master and is configured through the master’s ETS application.
The product
Designed for your installation.
8 relay channels for KNX switching and blind control
The SAE-810 is an eight-channel switching extension for the MSA-810 KNX master actuator, with potential-free contacts rated at 10 A / 230 VAC per channel for resistive loads. Switch compatible circuits individually or configure output pairs for up to 4 blinds or shutters. Every blind uses two channels, reducing the number available for independent switching.
Control functions and applications
Use delays, scenes, blocking, and hour counters to adapt switching to the installation. Blind mode provides travel-time settings, positioning, and alarm priorities. The 10 A rating applies to resistive loads; other load types must meet the manufacturer’s switching and inrush limits.
Select loads and channel configurations within the stated electrical limits.
Integrate with the master actuator system
The SAE-810 is an extension of the Elausys Universal KNX Actuator System and cannot operate independently. Its channels appear in the MSA-810 application, using the master’s KNX address.
Plan the module combination in ElauPro. System capacity depends on the extension types and their channel requirements. The combined limit of 40 channels at 10 A applies to MSA-810, SAE-810, and SAE-2410.
Power, installation, and configuration
The master supplies the extension’s control electronics through the side connector. The switched circuits require their own load supply.
Mount the module on a 35 mm DIN rail in the same row as the master and connect it to the extension chain. Generate the system application in ElauPro and configure the channels in ETS5 or ETS6. Configured KNX operation does not require an internet connection.
Specifications
- Reference
- SAE-810
- Manufacturer
- ELAUSYS
| Parameter | Specification |
|---|---|
| Product reference | SAE-810 |
| System role | Extension for MSA-810; cannot operate independently |
| Outputs / capacity | 8 potential-free relay outputs |
| Output / load voltage | 230 VAC |
| Load / output rating | 10 A per channel, resistive; maximum 25 A total per actuator assembly |
| Operating modes | Switching; blind/shutter control using channel pairs, up to 4 blinds |
| Control functions | Delays, minimum on/off times, staircase function, scenes, blocking, and hour counters |
| Limits and compatibility | Maximum 40 combined 10 A channels across MSA-810, SAE-810, and SAE-2410 per master |
| Control power supply | From MSA-810 through the side connector |
| Load / bus supply | External supply for the switched circuits |
| KNX integration | Via MSA-810; no separate KNX address |
| Additional technical details | 10,000,000 mechanical relay operations |
| Terminals | Screw terminals, up to 2.5 mm², 0.5 Nm |
| Housing | 4 SU (72 mm), IP20 |
| Mounting | 35 mm DIN rail |
| Operating temperature | 0 to +45 °C |
| Configuration | ETS5 / ETS6 with the ElauPro-generated MSA-810 application |
Key features
- 8 potential-free relay outputs
- 10 A per channel, resistive
- Switching, blind/shutter control using channel pairs, up to 4 blinds
- Delays, minimum on/off times, staircase function, scenes, blocking, and hour counters
- 4 SU DIN-rail housing
- Requires an MSA-810 master, with no separate KNX address
- Configure in ETS5 or ETS6 using the ElauPro-generated application
Documents & support
PDFDatasheet R2.00Product document · Opens in a new tabPDFSafety-and-Regulatory-Notice-ENProduct document · Opens in a new tabBrowse product supportFAQ
Frequently Asked Questions
Can this extension operate on its own?
No. It requires an MSA-810 master and is configured within the master’s ETS application. It does not need a separate KNX address.
Can it control blinds or shutters?
Yes. Pair the outputs in blind mode for up to 4 motors. These paired channels are not simultaneously available as independent switching outputs.
Does the rated current apply to motors and LED drivers?
The 10 A value is the resistive rating. Check the documented limits for the actual load type, including starting or inrush current, and respect the 25 A total-current limit.
How many SAE-810 extensions can I add?
Up to four SAE-810 extensions with one MSA-810 reach the 40-channel 10 A limit. Other extension types must fit within the remaining system capacity.
What power supply is required?
From MSA-810 through the side connector. External supply for the switched circuits.
How is it configured?
Generate the actuator-system application in ElauPro, then configure the channels and group addresses in ETS5 or ETS6. The master and extensions share one KNX address and application.
