ELAUSYS / MSA-810

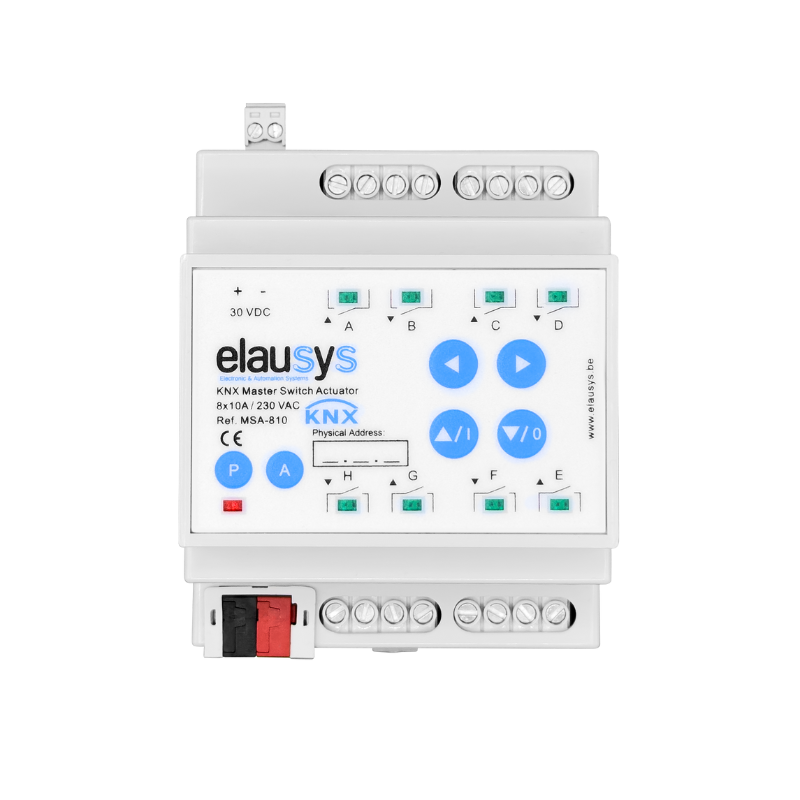

KNX Switch Actuator 8x10A (Master)
The MSA-810 is a KNX master actuator with eight 10 A relay outputs for switching or blind control. Add compatible extensions for heating, dimming, DALI, LED, and analogue control within one ETS application and KNX address. System capacity depends on the selected modules.
The product
Designed for your installation.
Switching and blind control with an expandable KNX master
The MSA-810 is a KNX master actuator with eight potential-free relay outputs rated at 10 A / 230 VAC for resistive loads. Use the eight relay channels for switching circuits, or pair them to control up to four blinds or shutters. Switching and blind functions can be combined within the available channels.
Control functions and applications
The master includes 64 logic functions for gates, sequences, timers, and mathematical operations. Four front push-buttons support manual operation. Hour counters and maintenance thresholds provide information for configured KNX monitoring.
Select loads and channel configurations within the stated electrical limits.
Integrate with the master actuator system
The MSA-810 carries the KNX address and application for the system. Extensions connect through the side connectors and are included in the ElauPro configuration. Up to eight extension slots are available, depending on the selected modules; SAE-2410 occupies three slots. A maximum of 40 combined 10 A channels is allowed across MSA-810, SAE-810, and SAE-2410.
Power, installation, and configuration
The master requires an external 24–30 VDC supply and a KNX bus connection. The switched circuits require their own load supply.
Mount the module on a 35 mm DIN rail. Generate the system application in ElauPro and configure the channels in ETS5 or ETS6. Configured KNX operation does not require an internet connection.
Specifications
- Reference
- MSA-810
- Manufacturer
- ELAUSYS
| Parameter | Specification |
|---|---|
| Product reference | MSA-810 |
| System role | KNX master actuator |
| Outputs / capacity | 8 potential-free relay outputs |
| Output / load voltage | 230 VAC |
| Load / output rating | 10 A per channel, resistive |
| Operating modes | Switching; blind/shutter control using channel pairs |
| Control functions | Delays, staircase function, scenes, blocking, hour counters, and maintenance thresholds |
| Limits and compatibility | Up to 8 extension slots, depending on module mix; maximum 40 combined 10 A channels across MSA-810, SAE-810, and SAE-2410 per master |
| Control power supply | 24–30 VDC external, <0.5 A |
| Load / bus supply | External supply for the switched circuits |
| KNX integration | KNX address and application held by the master |
| Additional technical details | 64 logic functions and 4 front push-buttons; 10,000,000 mechanical relay operations |
| Terminals | Screw terminals, up to 2.5 mm², 0.5 Nm; KNX micro terminal |
| Housing | 4 SU (72 mm), IP20 |
| Mounting | 35 mm DIN rail |
| Operating temperature | 0 to +45 °C |
| Configuration | ETS5 / ETS6 with the ElauPro-generated MSA-810 application |
Key features
- 8 potential-free relay outputs rated at 10 A / 230 VAC for resistive loads
- Switch individual circuits or control up to 4 blinds using paired channels
- Expand with switching, heating, dimming, DALI, LED, and analogue modules
- Run 64 built-in logic functions
- Use 4 front push-buttons for manual operation
- One KNX address and ETS application for the configured system
- Configure in ETS5 or ETS6 using the ElauPro-generated application
