High-capacity 24-channel switching extension module for the Elausys Universal KNX Actuator System. Expands MSA-810 master actuator with 24 relay outputs at 10A/230VAC each, configurable as independent switching channels or shutter/blind pairs. Ideal for large-scale commercial lighting and motor control applications requiring maximum channel density.

High-current 8-channel switching extension for the Elausys Universal KNX Actuator System, delivering 16A per channel for heavy-duty loads. Extends MSA-810 master with independent relay outputs for high-power lighting, appliances, and industrial equipment. Channels operate independently or grouped for shutter control operation;

Extension module for the Elausys Universal KNX Actuator System adding 8 switching channels at 10A each to the MSA-810 master actuator. Each channel supports independent switch or shutter/blind configuration through a single KNX interface, enabling scalable building automation up to 72 outputs.

8-channel LED dimming extension for the Elausys Universal KNX Actuator System providing PWM control of 12-24VDC LED strips and fixtures at 2A per channel. Configurable as individual dimmers or grouped for RGB/RGBW and Tunable White applications with smooth dimming curves. Requires MSA-810 master actuator.

8-channel KNX heating valve actuator extension for the Universal Actuator System controlling electrothermic valves in HVAC applications. Supports ON/OFF switching PWM modulation and PI temperature control for underfloor heating radiators and fan coil units. Requires MSA-810 master actuator.

2-channel KNX phase dimming extension for the Universal Actuator System providing smooth dimming of incandescent halogen and dimmable LED lamps up to 250W per channel. Features leading/trailing edge selection, LED optimization from 2W and parallel operation mode for 500W loads. Requires MSA-810 master actuator.

8-channel KNX digital output extension for the Universal Actuator System providing 0.25A switching at 12-30VDC for low-voltage control of valves, indicator LEDs, external relays, and contactors. Configurable as switch actuator, shutter controller, or heating valve control. Requires MSA-810 master actuator.

Professional KNX-to-DALI gateway extension for the Universal Actuator System, controlling up to 64 individual DALI devices or 16 groups through a single KNX interface. Features built-in web commissioning interface for visual addressing, direct gear testing, real-time lamp monitoring, and failure detection. Requires MSA-810 master actuator.

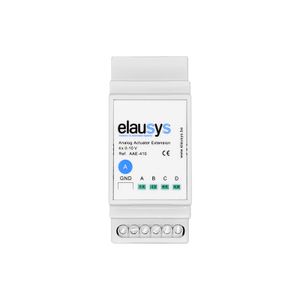

4-channel 0-10V analog output extension for the Elausys Universal KNX Actuator System enabling precise control of HVAC valves ventilation systems LED dimmers and RGB/RGBW lighting. Each channel configurable as analog output temperature controller dimmer or color channel. Ultra-compact 2SU design requires MSA-810 master actuator.

KNX master switching actuator with 8 channels at 10A forming the foundation of the Universal KNX Actuator System. Expandable to 72 channels via up to 8 extension modules controlled through a single KNX address. Features built-in logic functions, manual pushbuttons, and ElauPro cloud integration for rapid ETS configuration.
