ELAUSYS / DBE-64

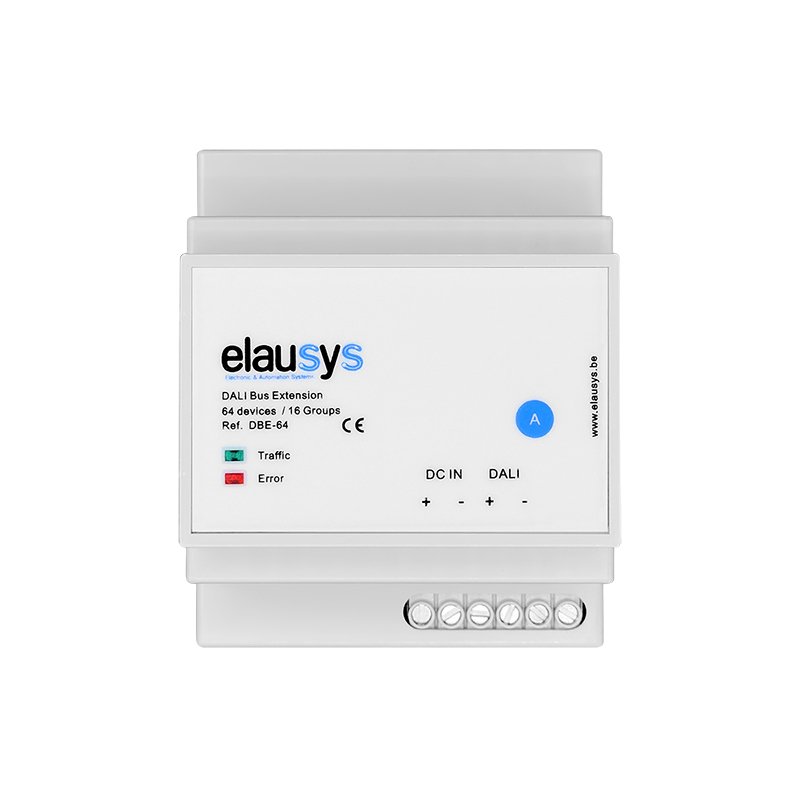

KNX DALI Gateway Extension, 64 Ballasts
The DBE-64 is a DALI extension for the MSA-810 KNX master actuator, supporting up to 64 DALI control-gear addresses and 16 DALI groups. Commission DALI devices through the system’s web interface. It requires an MSA-810 master and is configured through the master’s ETS application.
The product
Designed for your installation.
DALI lighting control through the MSA-810 system
The DBE-64 is a DALI extension for the MSA-810 KNX master actuator, supporting up to 64 DALI control-gear addresses and 16 DALI groups. Control compatible DALI ballasts and LED drivers individually or in groups. Select 32, 48, or 64 KNX control channels and map each channel to a DALI address or group.
Control functions and applications
Commission the DALI line through the system’s web interface. Search for devices, add unassigned control gear, set group membership, and test outputs. Lamp status and ballast failures are available by address for KNX monitoring.
DALI input devices, such as sensors and push-buttons, are not supported.
Integrate with the master actuator system
The DBE-64 is an extension of the Elausys Universal KNX Actuator System and cannot operate independently. Its channels appear in the MSA-810 application, using the master’s KNX address.
Plan the module combination in ElauPro. System capacity depends on the extension types and their channel requirements. The combined limit of 40 channels at 10 A applies to MSA-810, SAE-810, and SAE-2410.
Power, installation, and configuration
The master supplies the extension’s control electronics through the side connector. The DALI bus supply additionally requires an external 24 VDC input, rated for up to 300 mA. Connected luminaires require their own load supply.
Mount the module on a 35 mm DIN rail in the same row as the master and connect it to the extension chain. Generate the system application in ElauPro and configure the channels in ETS5 or ETS6. Use the web interface for DALI addressing, grouping, and testing. Configured KNX operation does not require an internet connection.
Specifications
- Reference
- DBE-64
- Manufacturer
- ELAUSYS
| Parameter | Specification |
|---|---|
| Product reference | DBE-64 |
| System role | Extension for MSA-810; cannot operate independently |
| Outputs / capacity | DALI bus master: up to 64 short addresses and 16 groups |
| Output / load voltage | DALI bus supply: 18 VDC |
| Load / output rating | DALI bus current limited to 230 mA |
| Operating modes | Individual-address or group control; 32 / 48 / 64 KNX channels selectable |
| Control functions | Addressing, grouping, testing, lamp-status reporting, and ballast-failure monitoring |
| Limits and compatibility | Each KNX channel maps to one address or group; DALI input devices are not supported |
| Control power supply | Control from MSA-810; external 24 VDC input, maximum 300 mA |
| Load / bus supply | Built-in DALI bus supply; luminaires and control gear require their own load supply |
| KNX integration | Via MSA-810; no separate KNX address |
| Additional technical details | Browser commissioning: search, add unassigned gear, re-address, group, and test |
| Terminals | Screw terminals, up to 2.5 mm², 0.5 Nm |
| Housing | 4 SU |
| Mounting | 35 mm DIN rail |
| Operating temperature | 0 to +45 °C |
| Configuration | ETS5 / ETS6 via MSA-810 and ElauPro; web interface for DALI commissioning |
Key features
- DALI bus master: up to 64 short addresses and 16 groups
- Map 32, 48, or 64 KNX channels to DALI addresses or groups
- Built-in DALI bus supply with an external 24 VDC input
- Address, group, and test control gear through the web interface
- Read lamp status and ballast-failure information
- Requires an MSA-810 master, with no separate KNX address
- Configure in ETS5 or ETS6 using the ElauPro-generated application
