Hardware and compatibility

Connection diagrams, front-panel indicators and compatibility limits for INV-KNX Fronius.

elausys · 11 September 2026
On this page

Connection arrangement

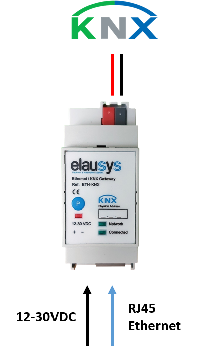

The KNX bus is connected on the top side of the gateway.

An external power supply 12-30VDC is required and connected on the bottom side of the module, beside the RJ45 connector for the ethernet cable.


KNX at the top; auxiliary supply and Ethernet at the bottom.

Front panel elementMeaning
Network LEDPhysical Ethernet connection is established.
Connected LEDCommunication with the inverter is established.
P buttonKNX programming mode.
Red LEDKNX programming status.

Compatibility and limitations

Use a Fronius inverter with the supported SunSpec Modbus interface. Connect it to the same router/network as the gateway. Select model 3 for Fronius inverters including Gen24, or model 6 for Fronius Symo Hybrid. Enable Modbus TCP and select the int+SF SunSpec data format as described in Section 4.

Manual navigation

All chapters of the INV-KNX Fronius user manual

Frequently Asked Questions

Where are the gateway connections?

The KNX bus connection is at the top. The auxiliary 12–30 VDC supply and RJ45 Ethernet connection are at the bottom.

What is the difference between the Network and Connected LEDs?

Network indicates a physical Ethernet connection. Connected indicates communication with the inverter.

Which Fronius model should I select?

Select model 3 for Fronius inverters including Gen24, or model 6 for Fronius Symo Hybrid. The inverter must support the required SunSpec Modbus interface.
